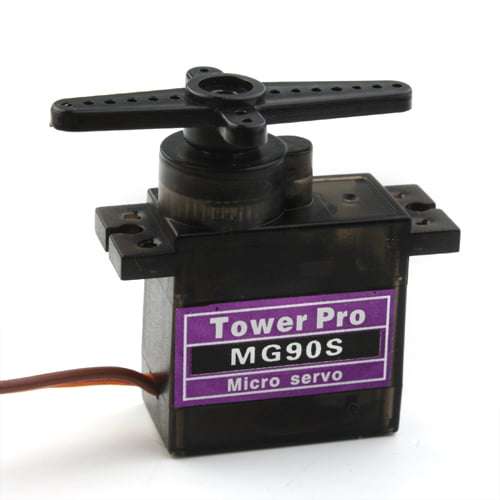

MG90S is a micro servo motor with metal gear. This small and lightweight servo comes with high output power, thus ideal for RC Airplane, Quadcopter or Robotic Arms. MG90S Wiring Description Wire Number Wire Colour Description 1 Brown Ground wire connected to the ground of system 2 Red Powers the motor typically 5V is used 3 Orange PWM signal is given in through this wire to drive the motor Applications Used as actuators in many robots like Biped Robot, Hexapod, robotic arm etc.. Commonly used for steering system in RC toys Robots where position control is required without feedback Less weight hence used in multi DOF robots like humanoid robots Can be used in DIY Kit for hobby projects Weight 15 gm Dimensions 35.5 × 32.5 × 12 mm Working Torque 2kg/Cm Reaction Speed 0.11 Seconds / 60 Degrees (4.8v) Temperature Range 0 degree to 55 degree Dead Band Width 5 usec Operation Voltage 4.8 – 6V DC Motor Type Coreless motor Operating Speed 0.1sec/60degree(4.8v), Gear Type All Metal gear Rotation 180 Degree
